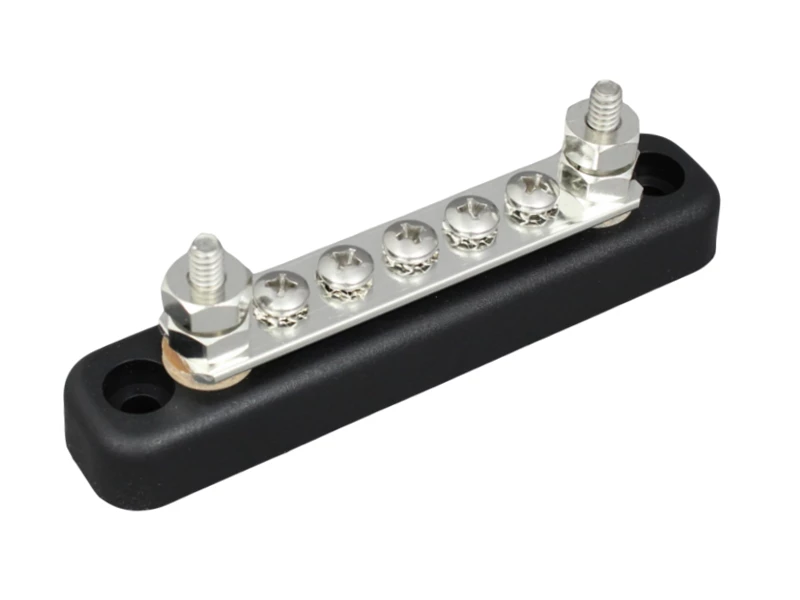

100A rated busbar / terminal block with two 5mm studs for the main power connection and five 4mm screw terminals for distributing power. All connections have locking washers and the busbar can be secured via the two moulded mounting holes.
Suitable for use in cars, boats, motorhomes, commercial vehicles etc.

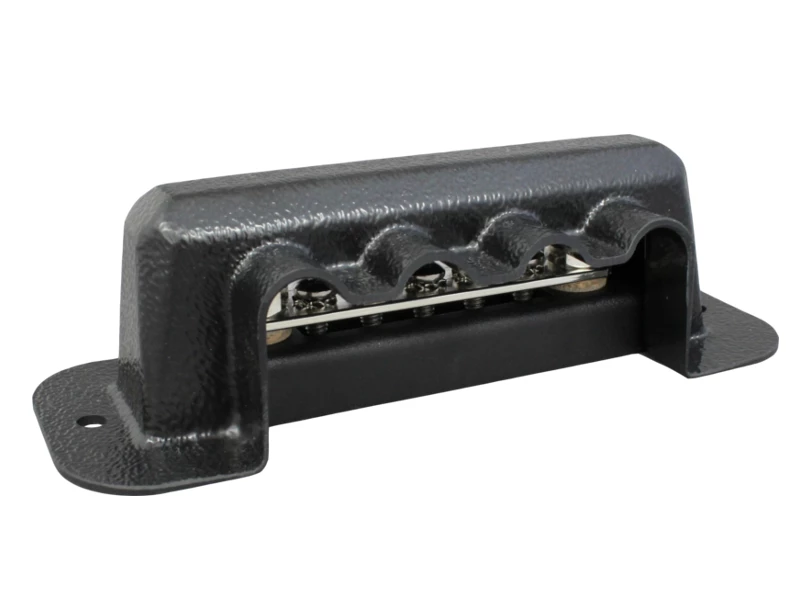

Optional cover available (sold separately) – P01184
Sold individually
| Max current rating | 100A total |
|---|---|
| Max Voltage rating | 48V DC |
| Terminal sizes | 2 x 5mm and 5 x 4mm |
| Stud height | 12mm |
| Base colour | Black |
| Base material | ABS (flame resistant) |
| Busbar strip material | Tin-plated solid copper |
| Terminal material | Stainless steel |
| Mounting point centres | 87.5mm |
| Mounting hole dia | 5.4mm with 9.9mm dia x 4.4mm counterbore |
| Overall dims | 106 (L) x 22(W) x 34.7(H) mm |
