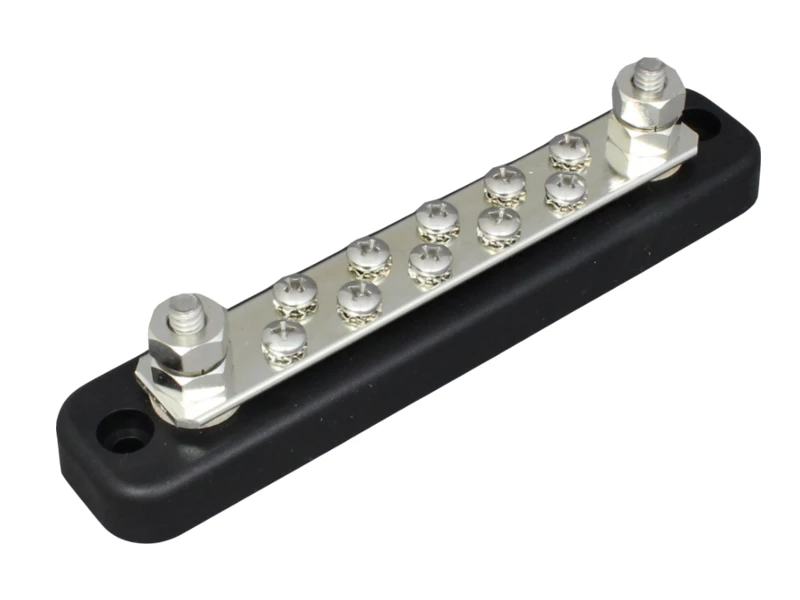

150A rated busbar / terminal block with two 6mm studs for the main power connection and ten 4mm screw terminals for distributing power. All connections have locking washers and the busbar can be secured via the two moulded mounting holes.
The terminals are stainless steel and the busbar is tin-plated solid copper.
Suitable for use in cars, boats, motorhomes, commercial vehicles etc.

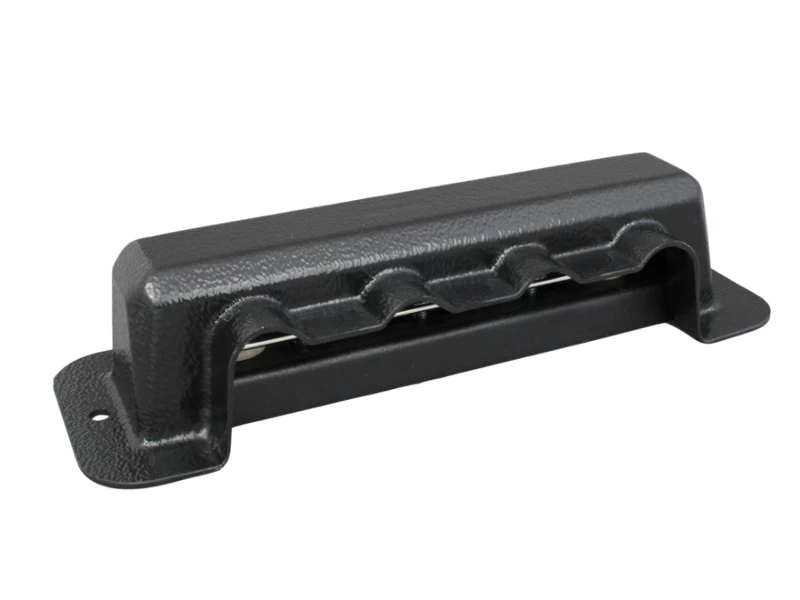

Optional cover available (sold separately) – P01267
Sold individually
| Max current rating | 150A total |
|---|---|
| Max Voltage rating | 48V DC |
| Terminal sizes | 2 x 6mm and 10 x 4mm |
| Stud height | 17mm |
| Base colour | Black |
| Base material | ABS (flame resistant) |
| Busbar strip material | Tin-plated solid copper |
| Terminal material | Stainless steel |
| Mounting point centres | 132mm |
| Mounting hole dia | 5.4mm with 9.9mm dia x 5.2mm deep counterbore |
| Overall dims | 152 (L) x 31.5(W) x 35.5(H) mm |
