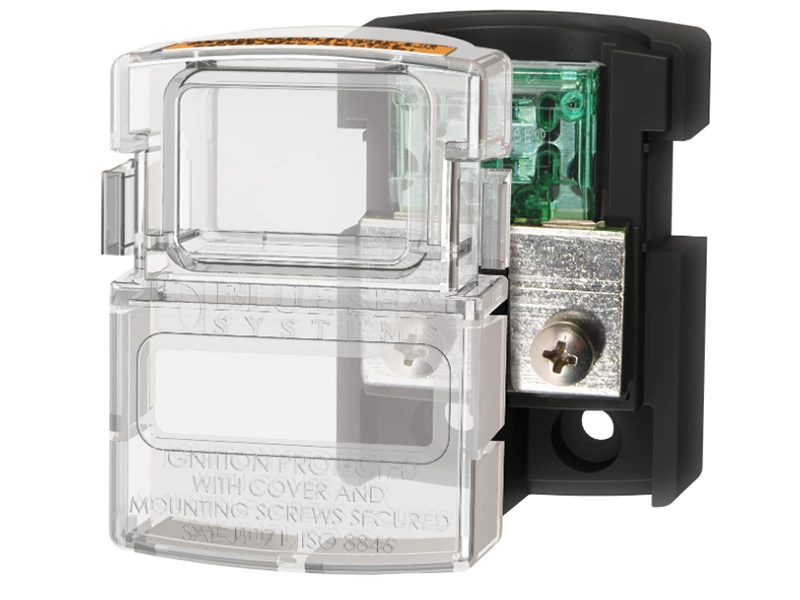

This 5006100 MAXI fuse block from Blue Sea Systems provides ignition-protected fusing for higher current circuits, making it safe for use around fuels on boats and in other applications.
The snap-on terminal cover insulates all conductive parts of the block and the terminal screws compress the fuse blades within the block for low resistance, high conductivity connections.
Breakouts in the cover allow for cable entry from below or from the sides (max. size 20mm²) and the block is rated to 80A max (some larger ring terminals may need to be mounted upside down to allow the cover to be fitted).
The clear cover allows visual identification of the state of the fuse and holes in the base of the block enable surface mounting.
Note: Fuse not included – click here.
Features
- 32V max. voltage
- 80A current rating
- Accepts cable up to 20mm²
- Ignition protected
| Voltage rating | 32V DC max. |
|---|---|
| Current rating | 80A max. |
| Fuse type accepted | Maxi blade |
| Terminal screw size | #10 (M5) |
| Mounting screw size required | 5mm |
| Contact material | Tin-plated brass |
| Cable size | 1-20mm² (18-4 AWG) |
| Ignition protected | Yes |
| Dimensions | 52.4 (W) x 71.1 (L) x 36.8 (D) mm |
| Standards/specifications met | ISO 8846 Marine, SAE J1171 Marine |
| Manufacturer's part no | 5006100 |
