Original price was: £39.10.£27.37Current price is: £27.37.
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Multiple payment methods, 100% payment security
- The home of quality products.

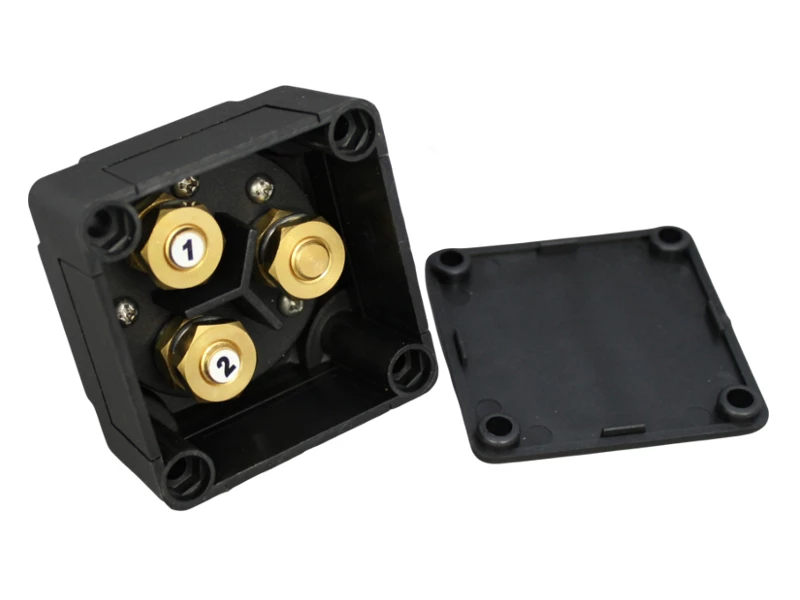

4 position (1 ON / 2 ON / 1+2 ON / OFF), single pole marine battery isolator / changeover switch with fixed control knob and square body profile.
For selection / isolation of 2 batteries (or battery banks).
Useful for selecting power sources on boats, preventing battery drain if left for long periods, or isolation of the power sources in an emergency.
4 breakout panels provide various cable entry options.
Sold individually. Fixings not included.
| Max. continuous operating current | 300A |
|---|---|
| Max. peak current | 1000A for 5secs |
| Max. voltage | 48V DC |
| Terminal stud size | M10 x 10mm |
| Fixing hole pitch | 55.3mm |
| Fixing hole dia | 5.3mm |
| Overall dims | 69 (L) x 77 (W) x 69 (H) mm |
