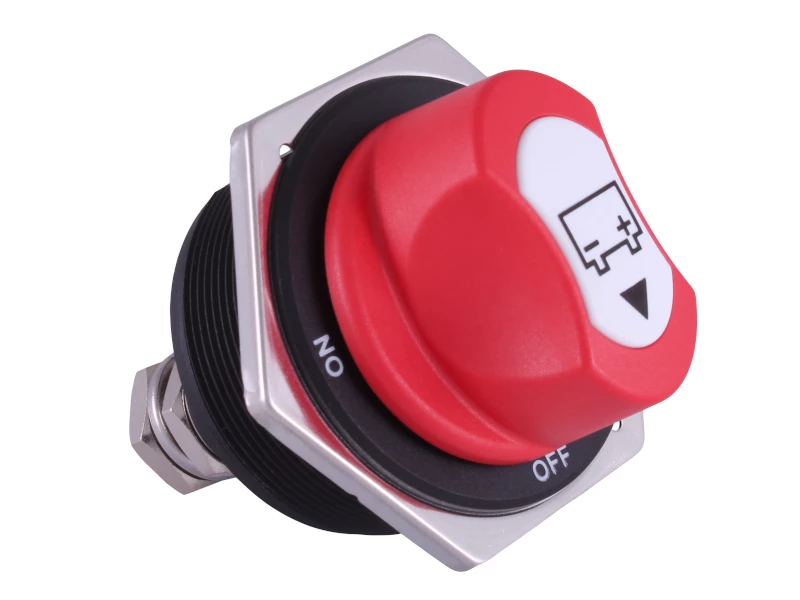

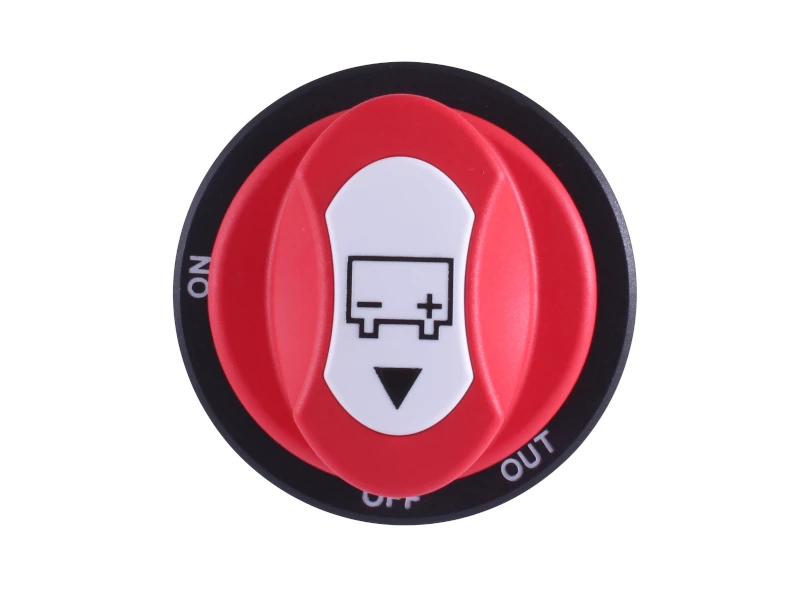

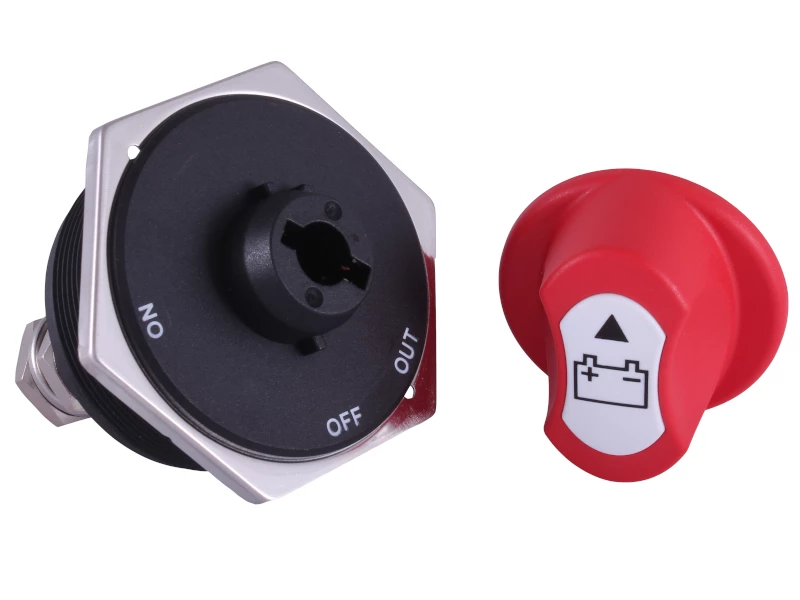

2 position (ON/OFF), single pole marine battery isolator / master switch rated 300A continuous @ 32V DC. This IP56 rated switch has a maximum cranking current of 1000A @ 32V DC and features a third switch position marked OUT where the actuator that can be removed, providing a useful security measure.
For isolation of batteries from loads or charging sources in boats and vehicles. Useful for preventing parasitic battery drain when left for long periods or as an emergency shut-off.

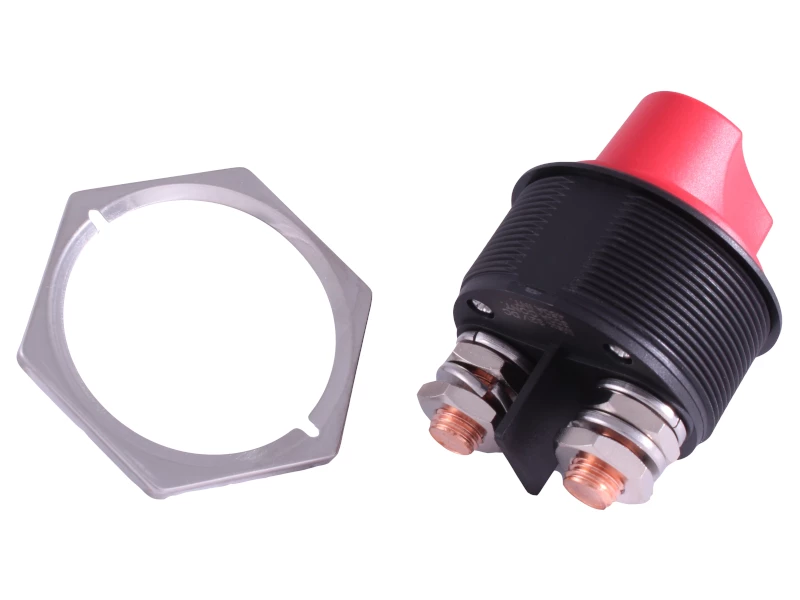

Designed to be panel-mounted in a 52mm hole and secured using the supplied metal nut.
High quality switch made by SCI of Taiwan.
| Max. continuous operating current | 300A @ 32V DC |
|---|---|
| Max. intermittent current | 450A @ 32V DC |
| Cranking current | 1000A @ 32V DC |
| Max. voltage | 32V DC |
| Protection rating | IP56 |
| Terminal stud size | M10 |
| Panel hole dia | 52mm |
| Max. panel thickness | 18mm |
| Switch body diameter (max.) | 55mm |
| Protrusion from mounting surface (acutator fitted) | 28mm |
| Clearance required behind mounting surface | 45mm (min.) |
