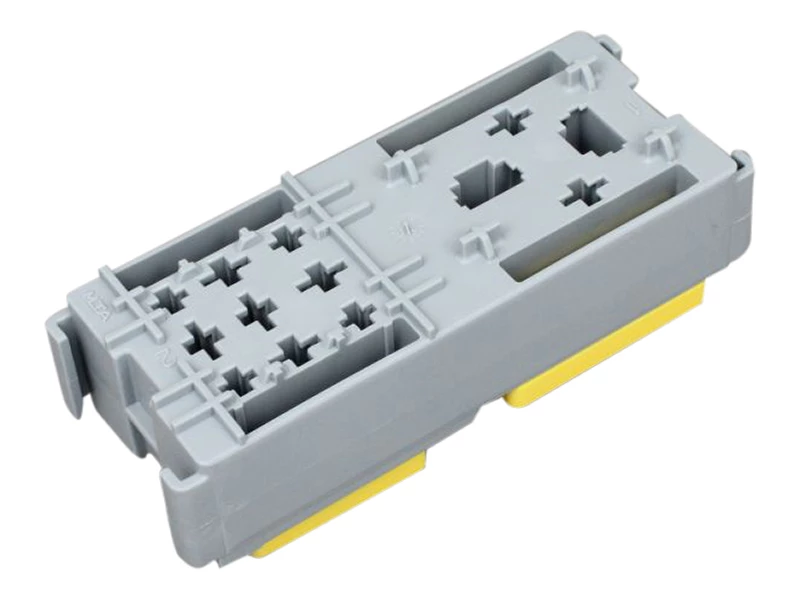

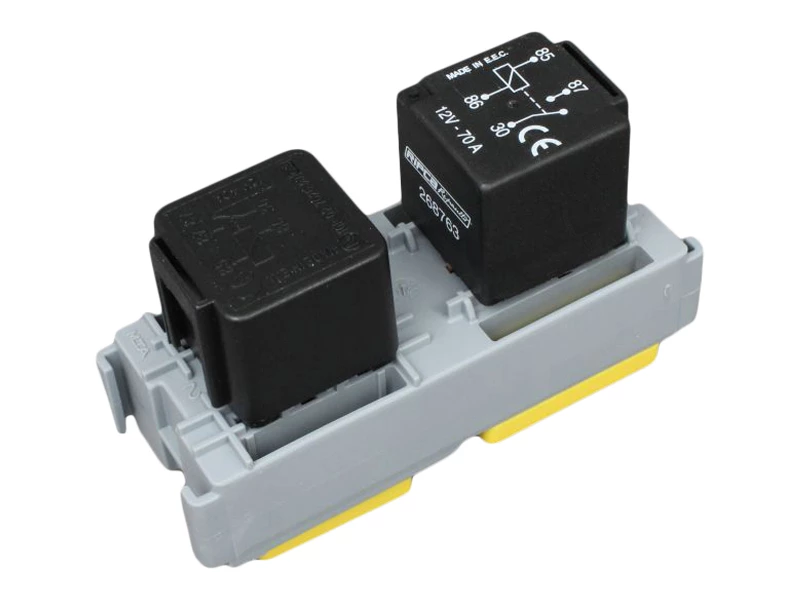

Module for holding 1 mini relay and 1 high power (maxi) relay, as part of the MTA modular fuse and relay system.

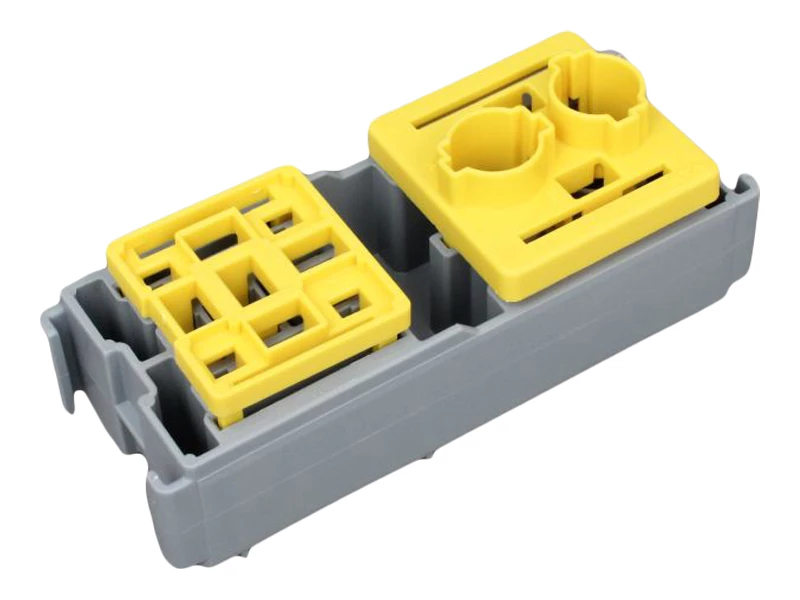

Terminals are crimped and/or soldered to the cable and then inserted into the underside of the module through a suitable panel cut-out. Once inserted, the yellow secondary locking cages are pushed into place to prevent the terminals being pulled out. Please see the ‘further information’ section below for a full list of compatible terminals.
This module needs to be used with either mounting brackets or housings and optional covers are available.
Sold individually, relays and terminals not included.
Further information
The following terminals can be used with this module
- Terminal for 2.8mm & 4.8mm Relay Pins – 1.5 – 2.5mm² Cable
- Terminal for 6.3mm Relay Pins – 2.5 – 4.0mm² Cable
- Terminal for 9.5mm Relay Pins – 2.5 – 4.0mm² Cable
- Terminal for 9.5mm Relay Pins – 2.5 – 4.0mm² Cable
| Components housed | 1 mini relay (max. 4x 2.8/4.8mm & 5x 6.3mm terminals) and 1 high power relay (2x 6.3mm & 2x 9.5mm terminals) |
|---|---|
| Material | Polypropylene (30% glass-filled) |
