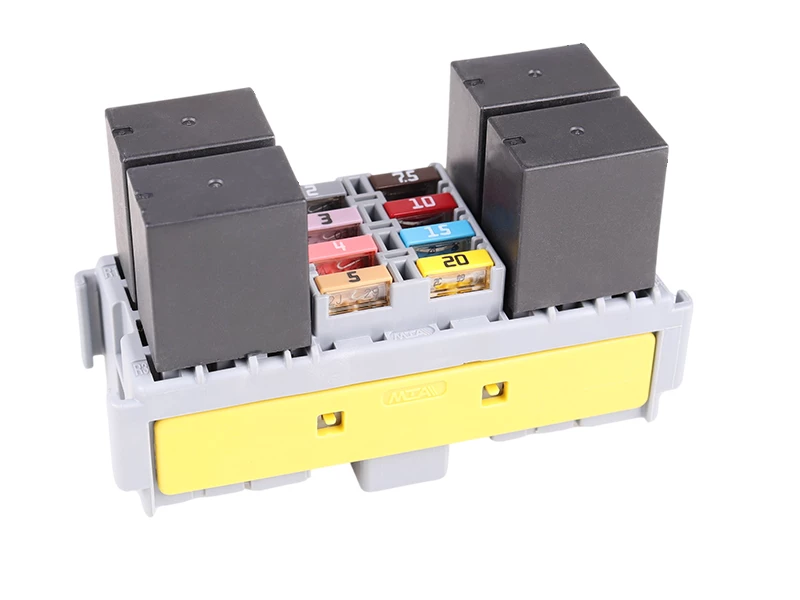

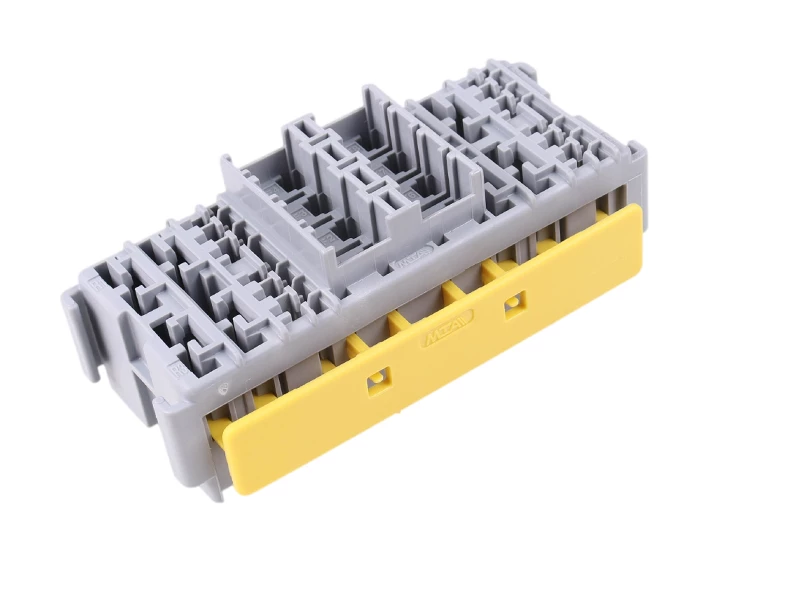

Module for holding 4 micro relays and 8 mini blade fuses, as part of the MTA modular fuse and relay system.

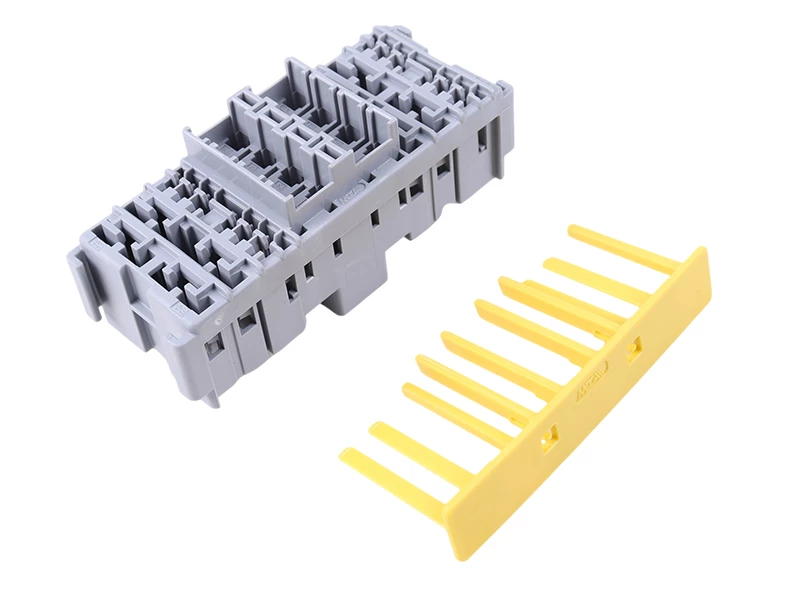

Terminals are crimped and/or soldered to the cable and then inserted into the underside of the module through a suitable panel cut-out. Once inserted, the yellow locking cage is pushed into place to prevent the terminals being pulled out. Please see the ‘further information’ section below for the full list of compatible terminals. Note: busbar terminals can be used for the fuses if cut-down to strips of 4.
This module needs to be used with either mounting brackets or housings and optional covers are available.
Sold individually, fuses, relays and terminals not included.
Further information
The following terminals can be used with this module
- Mini Blade Fuse Terminal – 0.35 – 0.75mm² Cable
- Mini Blade Fuse Terminal – 1.0 – 2.0mm² Cable
- Mini Blade Fuse Terminal – 2.5 – 4.0mm² Cable
- Mini Blade Fuse Busbar Terminals – 1.0 – 2.0mm² Cable
- Mini Blade Fuse Busbar Terminals – 2.5 – 4.0mm² Cable
- Terminal for 2.8mm & 4.8mm Relay Pins – 1.5 – 2.5mm² Cable
- Terminal for 6.3mm Relay Pins – 2.5 – 4.0mm² Cable
| Components housed | 4 micro relays and 8 mini blade fuses |
|---|---|
| Material | Polypropylene (30% glass-filled) |
