Original price was: £20.91.£14.64Current price is: £14.64.
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Multiple payment methods, 100% payment security
- The home of quality products.

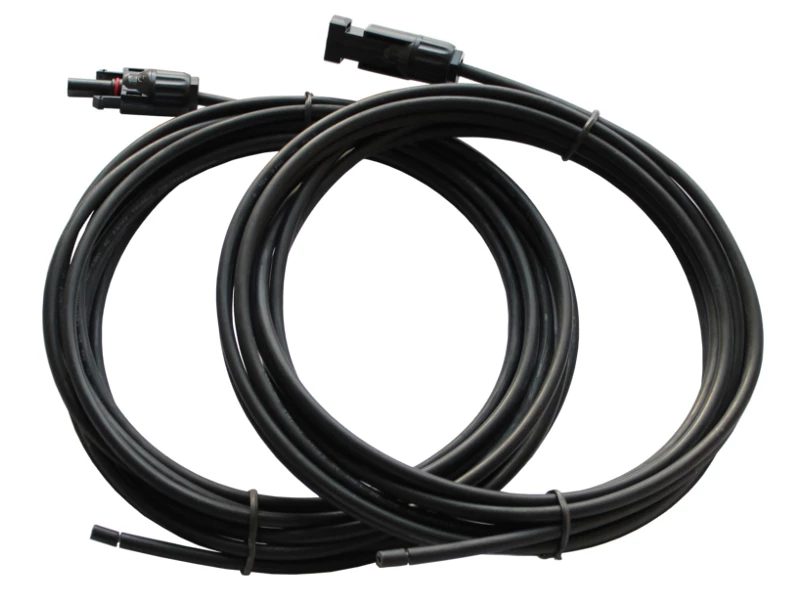

A pair of solar-specific, UV-resistant cables with a 2.5mm² conductor cross-section. Supplied as 2 x 5m lengths with one end of each cable terminated with a solar connector (male and female) and the other end left un-terminated. The solar connectors are MC4-compatible.
Ideally suited to connecting between a solar panel, equipped with MC4-type connectors, and a solar charge controller.
As a guide, 2.5mm² cable is recommended for panels of 150W or less having a panel-to-controller cable length of 5m or less. If greater than this, use 4mm² cable.
Note: Never connect or disconnect solar connectors whilst they are under electrical load as this can cause arcing which can damage the contacts.
| Voltage rating | 600VDC |
|---|---|
| Nominal current rating | 22A |
| Conductor cross section | 2.5mm² |
| Maximum overall cable diameter | 5.6mm |
| Length | 2 x 5m |
| Fitted connectors | 1 x male & 1 x female solar connectors (MC4-compatible) |
