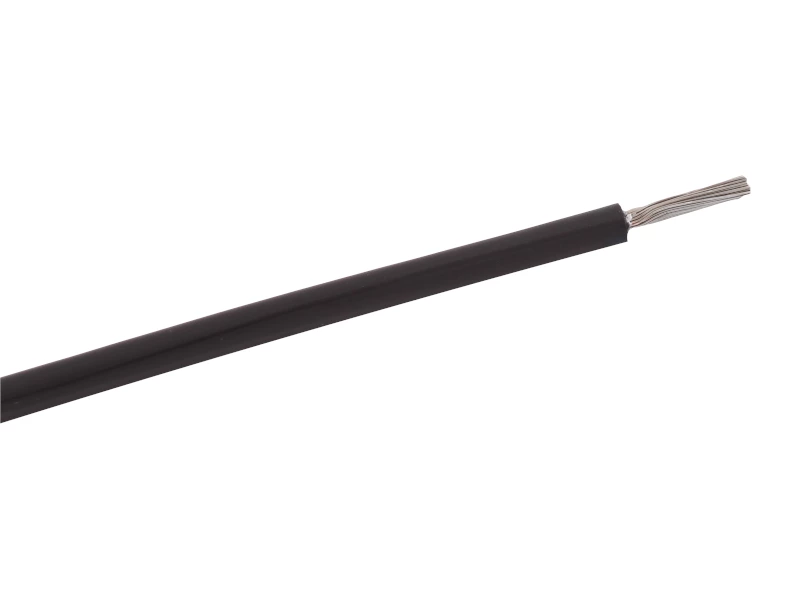

Single core, solar (photovoltaic) cable with a conductor cross-sectional area of 6mm² and a nominal current carrying capacity of 70A at 60°C.
Manufactured to European standard H1Z2Z2-K with a flexible, stranded, tinned copper conductor and a black, UV resistant sheath to prevent fade and degradation.
Ideal for medium sized solar panel installations on campervans, motorhomes, caravans and boats.
Sold by the metre and on 30m reels.
| Length | By the metre, 30m Reel |
|---|---|
| Voltage rating | 1500V DC |
| Nominal current rating | 70A (up to 60°C – derate at higher temps) |
| Nominal conductor cross sectional area | 6.0mm² |
| Maximum overall cable diameter | 6.1mm |
| Conductor material | Class 5 flexible tinned copper |
| Conductor resistance @ 20°C | 3.39 Ω/km |
| Insulation material | Halogen-free cross-linked compound |
| Sheath material | Halogen-free cross-linked, flame retardant compound |
| Sheath insulation colour | Black |
| Minimum band radius | 5 x OD |
| Temperature rating | -40°C to +90°C |
| Standards | See datasheet under the Manuals & Guides tab |
