Victron Energy 6-Way Mega Fuse Holder With Busbar

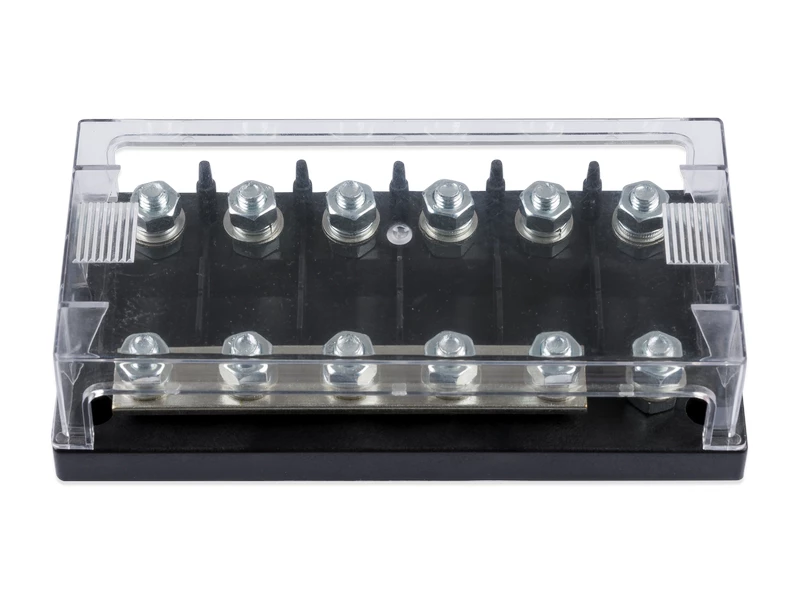

Victron Energy 6-way mega fuse holder with integrated busbar and clear polycarbonate cover. This holder saves on cabling by enabling you to make a single connection to the battery and distribute power to several fuse-protected circuits. This is the ideal solution as the primary distribution & fusing point point for higher power circuits leading directly from your battery in campervans, motorhomes, boats and off-grid applications.

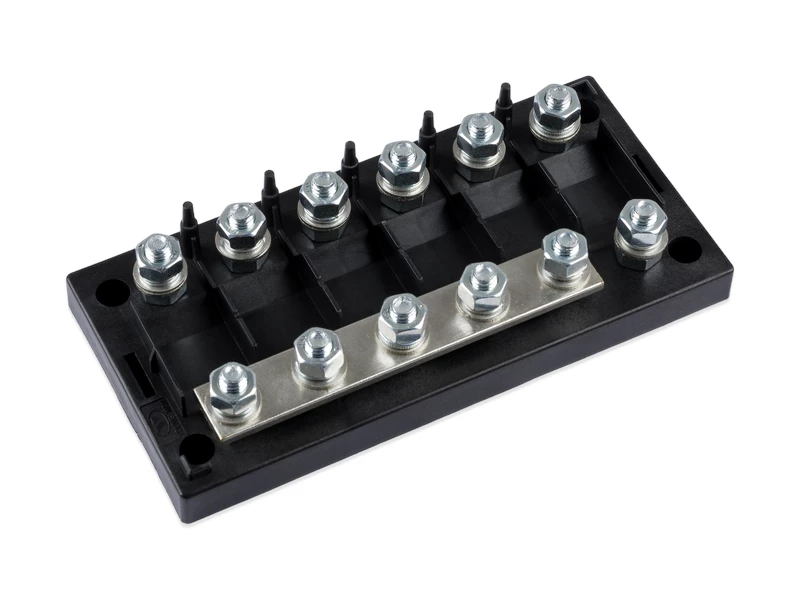

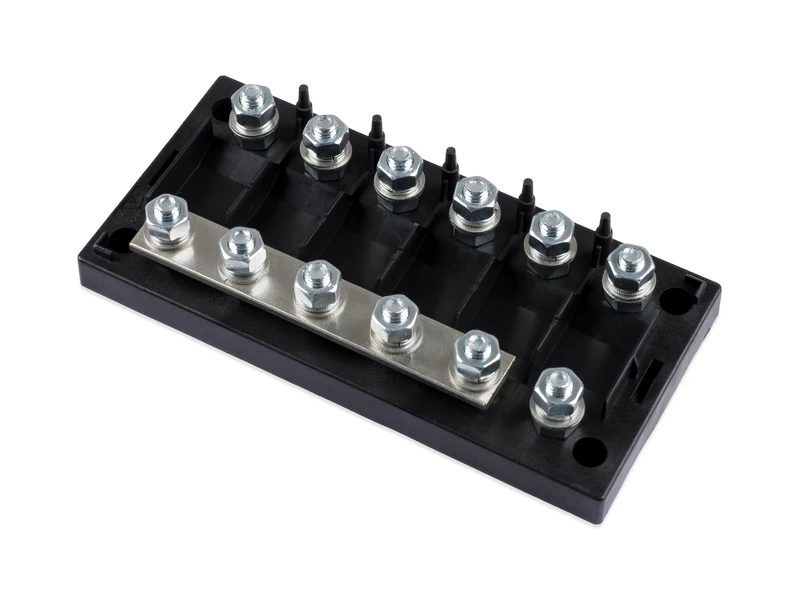

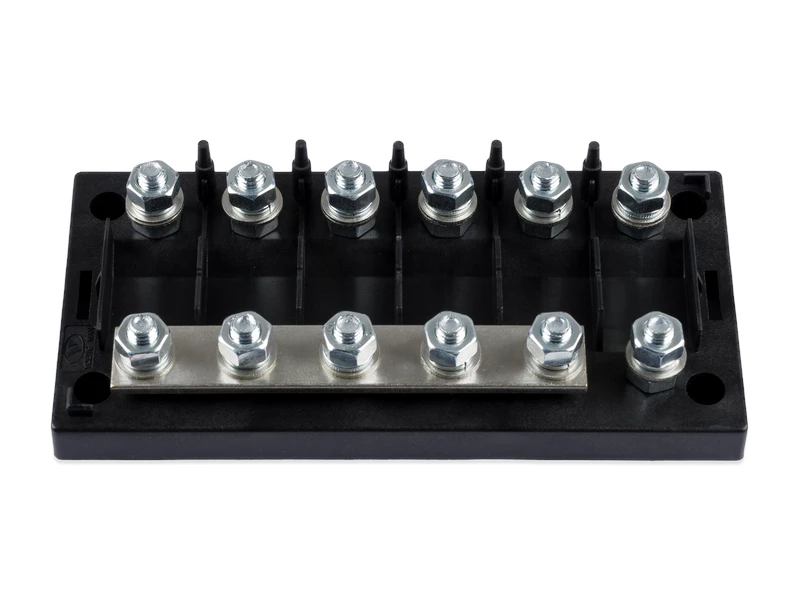

The busbar has a maximum current rating of 250A and a maximum voltage rating of 70V DC.  Five of the fuse locations are connected via a tin-plated copper busbar and one fuse location is ‘straight-through’.

Fuse and cable connections are made via 12 x M8 galvanised steel bolts, lock washers and hex nuts.

The black ABS body incorporates 4 x 6mm diameter mounting holes to fix the holder securely to a flat surface (fixings not included).
