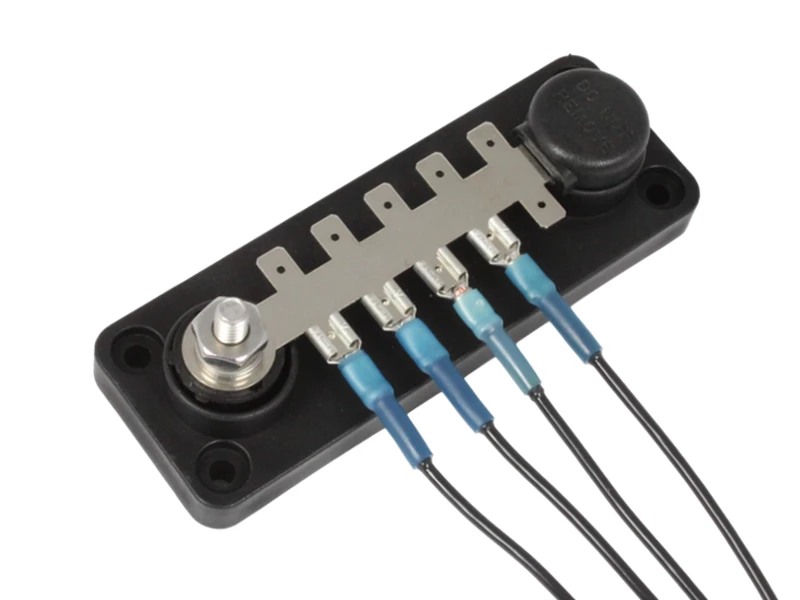

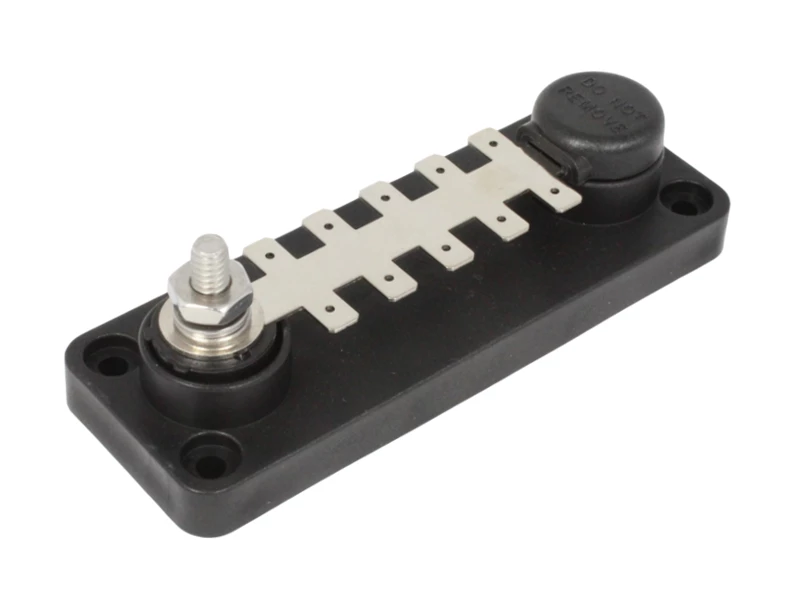

High quality 120A, 10 point busbar from VTE that allows multiple negative cables to be returned to a common point. This version has push-on tab terminals allowing rapid and simple connection of cables fitted with 6.3mm female blade terminals. Each tab terminal is rated to 20A, making this a great solution for consolidating the negatives of lower current circuits in vehicles and boats.
The main connection post is 6mm dia. (1/4″) and the busbar body is secured via four mounting holes.
Corrosion-resistant fittings for use in marine and other harsh environments.

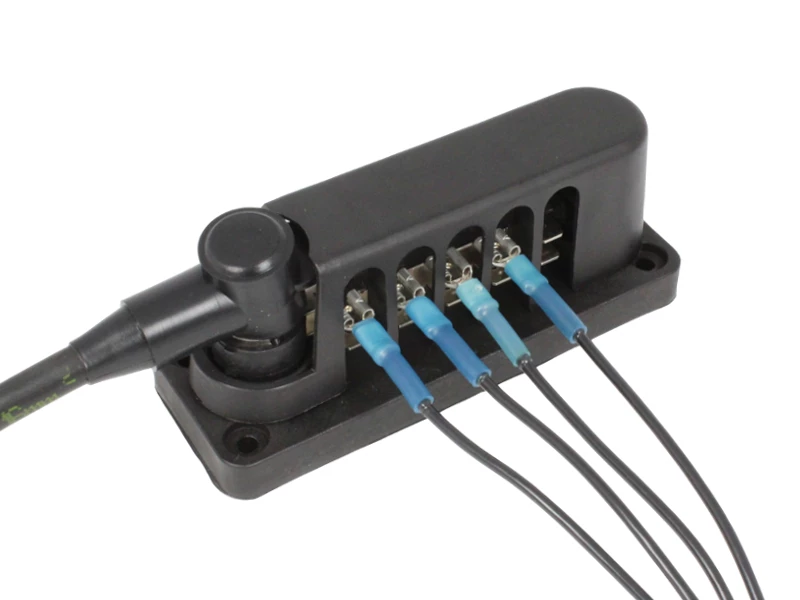

Optional cover kit available to protect against accidental shorts – P01554
Sold individually
| VTE Part Number | TTB7710N14 |
|---|---|
| Max. total current rating | 120A @ 12VDC |
| Individual tab current rating | 20A @ 12VDC |
| Max Voltage rating | 48VDC |
| Main terminal post dia | 6mm (1/4") |
| Tab terminal width | 6.3mm male blade |
| Base colour | Black |
| Base material | Glass-filled nylon |
| Connection post hardware material | Stainless steel |
| Connection plate material | Nickel-plated brass |
| Mounting hole centres | 107.9 x 28.6 mm |
| Mounting hole dia | 5.0mm |
| Overall dims | 123.8 (L) x 44.5 (W) x 43.5 (H) mm |
