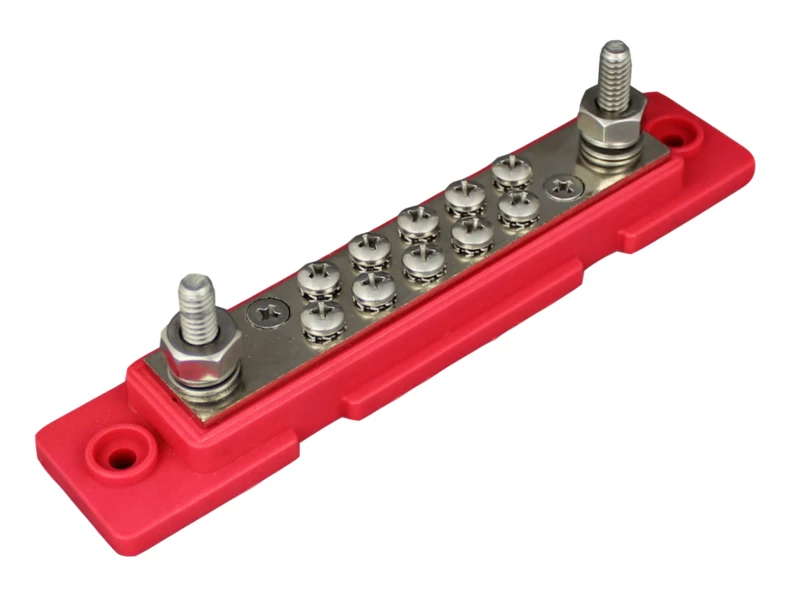

10 point power distribution block (busbar) from VTE that allows the connection of multiple circuits to a single power feed cable, providing a secure and flexible solution for power distribution around vehicles and boats.
Each distribution point is rated at 15A continuous duty and 20A intermittent duty (less than 1 min)
Stainless steel fittings to resist corrosion in a marine environment
Sold individually
| VTE Part Number | 771025N0N02 |
|---|---|
| Max current rating | 150A @ 12V (15A / point continuous, 20A / point intermittent <1 min) |
| Max Voltage rating | 48V |
| Terminal post dia | 6.4mm (1/4") x 2 |
| Connection point screw size | 4.2mm (#8-32 UNC / 0.164") x 10 |
| Base colour | Red |
| Base material | Glass-filled nylon |
| Terminal post material | Stainless steel |
| Terminal nut material | Stainless Steel |
| Flat washer material | Stainless steel |
| Spring washer material | Stainless steel |
| Connection screw material | Stainless steel |
| Toothed washer material | Stainless steel |
| Mounting point centres | 131.8mm |
| Mounting hole dia | 5.0mm |
| Overall dims | 152.4 (L) x 31.8 (W) x 37.3 (H) mm |
