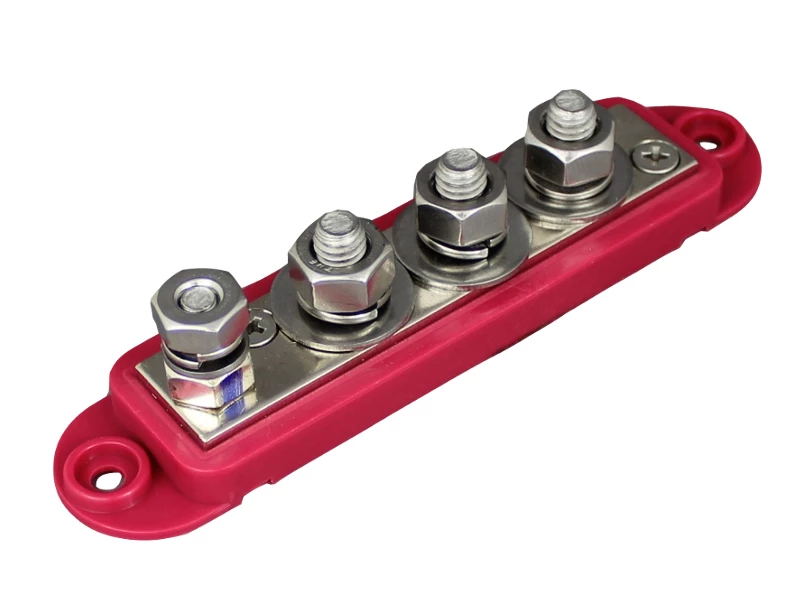

4 point power distribution post (busbar) from VTE that allows multiple power circuits to be split off from a single power feed cable. Ideal for routing power around motorhomes, campervans, boats and other vehicles.
Each connection post can accommodate multiple connections providing a secure and flexible solution for power distribution.
Stainless steel fittings to resist corrosion in a marine environment

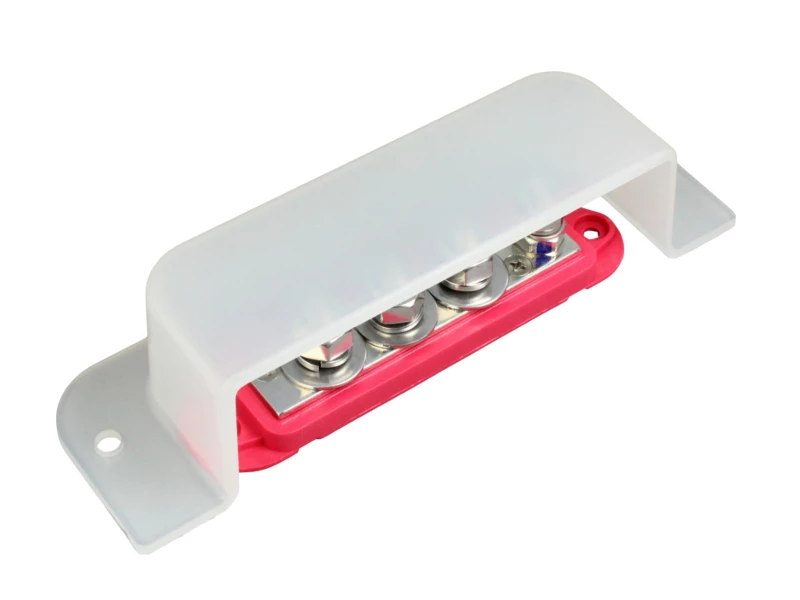

Optional cover available (sold separately) – P00218
Sold individually
| VTE Part Number | 7705N0N02 |
|---|---|
| Max current rating | 210A @ 12V |
| Max Voltage rating | 48V |
| Terminal post dia | 6.4mm (1/4") |
| Connection post dia | 7.9mm (5/16") x 3 |
| Base colour | Red |
| Base material | Glass-filled nylon |
| Contact plate material | Nickel-plated brass alloy |
| Terminal post material | Stainless steel |
| Connection post material | Stainless steel |
| Connection nut material | Stainless Steel |
| Flat washer material | Stainless steel |
| Spring washer material | Stainless steel |
| Mounting point centres | 118.4mm |
| Mounting hole dia | 5.0mm |
| Overall dims | 133.5 (L) x 28.9 (W) x 26.8 (H) mm |
